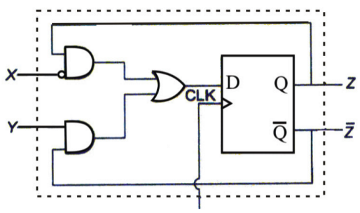

A sequential circuit using D Flip-Flop and logic gates is shown in the figure, where X and Y are the inputs and Z is the output. The circuit is
A sequential circuit using D Flip-Flop and logic gates is shown in the figure, where X and Y are the inputs and Z is the output. The circuit is
A.
S-R Flip-Flop with inputs X = R and Y = S
B.
S-R Flip-Flop with inputs X = S and Y = R
C.
J-K Flip-Flop with inputs X = J and Y = K
D.
J-K Flip-Flop with inputs X = K and Y = J
AnswerAnswer: Option D
Solution
Answer: Option D
No explanation is given for this question Let's Discuss on Board
