Q172

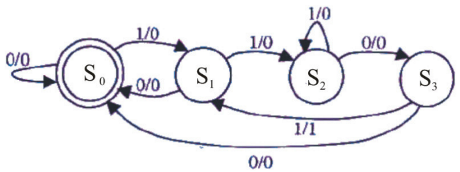

The following Finite State Machine (FSM) is used to detect a particular pattern in input data stream. Whenever the pattern is matched at input, output is set to '1' or else output is cleared to '0'. For which of the following data stream, output goes to '1' twice?
The following Finite State Machine (FSM) is used to detect a particular pattern in input data stream. Whenever the pattern is matched at input, output is set to '1' or else output is cleared to '0'. For which of the following data stream, output goes to '1' twice?
A.
0010011010010101
B.
0101011000010101
C.
0011011010010101
AnswerD.
1100100101001010
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
