The encapsulation of transistor is necessary for
Select an option to see the answer and solution.
ECE · all questionsAnalog Electronics
Analog Electronics
practice.
Practice every MCQ with options. Use Show answers when you want the correct option and solution.
377
Questions
3/19
Page
Pick an option on a question to see the right answer and solution.
In deriving ac equivalent circuit for an amplifier circuit we short circuit
Select an option to see the answer and solution.
Thermal runaway is not possible in FET because as the temperature of FET increases
Select an option to see the answer and solution.
The direction of induced e.m.f. can be found by
Select an option to see the answer and solution.
In an iron cored coil the iron core is removed so that the coil becomes an air cored coil. The inductance of the coil will
Select an option to see the answer and solution.
A crack in the magnetic path of an inductor will result in
Select an option to see the answer and solution.
Consider the following statements:
A clamper circuit
1. adds or subtracts a dc voltage to or from a waveform.
2. does not change the shape of the waveform.
3. amplifies the waveform.
Which of the statements give above are correct?
Of these statements
A clamper circuit
1. adds or subtracts a dc voltage to or from a waveform.
2. does not change the shape of the waveform.
3. amplifies the waveform.
Which of the statements give above are correct?
Of these statements
Select an option to see the answer and solution.
Class-B amplifier has less efficiency compared to
Select an option to see the answer and solution.
In a MOSFET operating in the saturation region, the channel length modulation effect causes
Select an option to see the answer and solution.
A two stage capacitor coupled CE amplifier has stages having a voltage gain of 100 each. It is known that the gain of each stage drops by 3 dB at lower cutoff frequency. What is the overall gain of the multistage amplifier at lower cutoff frequency?
Select an option to see the answer and solution.
A Darlington stage is shown in the figure is, if the trans-conductance Q1 is gm1 and Q2 is gm2, then the overall trans-conductance gm is given by
Select an option to see the answer and solution.

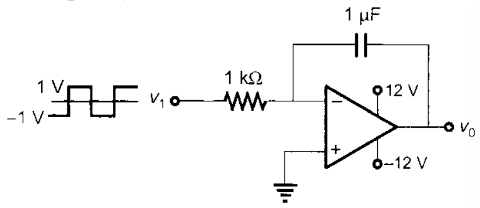

The input Vi to the circuit shown in figure below is a square wave of amplitude ±1 V and frequency 100 Hz.
Assuming ideal components, the peak-to-peak amplitude of the output V0 is:
Assuming ideal components, the peak-to-peak amplitude of the output V0 is:
Select an option to see the answer and solution.
Which type of negative feedback is used to improve performance of current amplifier?
Select an option to see the answer and solution.
For 555 astable multivibrator, if C = 0.01 µF, RA = 10 kΩ, RB = 50 kΩ, the frequency and the duty cycle will be nearly.
Select an option to see the answer and solution.
The hybrid-pi model is used for:
Select an option to see the answer and solution.
Consider an inverting amplifier with a feedback resistor R2 = 10 kΩ and an op-amp with parameters; AoL = 105 and Ri = 10 kΩ. Assuming the output resistance R0 of the op-amp is negligible, the closed-loop input resistance at the inverting terminal of an inverting amplifier will be nearly:
Select an option to see the answer and solution.
A source follower (using a FET) usually has a voltage gain which is
Select an option to see the answer and solution.
In the Hybrid-pi model for the BJT small signal analysis, rπ denotes
Select an option to see the answer and solution.

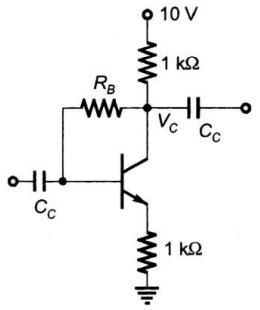

For the circuit shown in figure, the transistor parameters are VBE = 0.7 V , β = 99. If VC is to be set at 7.5 V, the required value (in kΩ) of RB is
Select an option to see the answer and solution.
Which one of the following is a wide band amplifier?
