Which one of the following statements is correct in respect of the theory of stability?
Select an option to see the answer and solution.
ECE · all questionsControl Systems
Control Systems
practice.
Practice every MCQ with options. Use Show answers when you want the correct option and solution.
309
Questions
5/16
Page
Pick an option on a question to see the right answer and solution.
If is the given network function, which one of the following describes the correct Bode plot?
Select an option to see the answer and solution.
A second-order overall transfer function is given by It's resonant frequency is:
Select an option to see the answer and solution.
What is the value of the damping ratio of a second order system when the value of the resonant peak is unity?
Select an option to see the answer and solution.

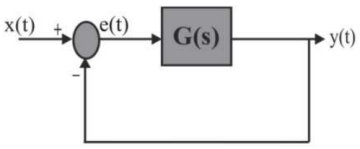

A closed loop system is shown in the above figure.
What is the ratio of output frequencies
What is the ratio of output frequencies
Select an option to see the answer and solution.
The system mode described by state equations
\mathop x\limits^. = \left[ {\begin{array}{*{20}{c}} 0&1\\ 2&{ - 3} \end{array}} \right]x + \left[ {\begin{array}{*{20}{c}} 0\\ 1 \end{array}} \right]u,\,y = \left[ {1\,\,1} \right]x {\rm{ is}}
\mathop x\limits^. = \left[ {\begin{array}{*{20}{c}} 0&1\\ 2&{ - 3} \end{array}} \right]x + \left[ {\begin{array}{*{20}{c}} 0\\ 1 \end{array}} \right]u,\,y = \left[ {1\,\,1} \right]x {\rm{ is}}
Select an option to see the answer and solution.
If the state space equation of a system is:
\mathop x\limits^. = \left[ {\begin{array}{*{20}{c}} { - 3}&1\\ 0&{ - 2} \end{array}} \right]x
And the initial state value x(0) =[10 -10]T, the steady-state value is [A B]T, what are the respective values of A and B?
\mathop x\limits^. = \left[ {\begin{array}{*{20}{c}} { - 3}&1\\ 0&{ - 2} \end{array}} \right]x
And the initial state value x(0) =[10 -10]T, the steady-state value is [A B]T, what are the respective values of A and B?
Select an option to see the answer and solution.
In a speed control system, output rate feedback is used to
Select an option to see the answer and solution.
Which one of the following relations holds good for the tachometer shown in the given figure?
Select an option to see the answer and solution.
The frequency at which the magnitude of Bode plot crosses 0 dB axis is known as
Select an option to see the answer and solution.
With the conventional notation = AX + BU for the state description of a liner time-invariant network, examine the validity of the following statements relating to the matrix A:
1. A is symmetrical if the network is reciprocal.
2. The sum of the natural frequencies of the network is equal to the determinant of A.
Which of these statements is/are true?
1. A is symmetrical if the network is reciprocal.
2. The sum of the natural frequencies of the network is equal to the determinant of A.
Which of these statements is/are true?
Select an option to see the answer and solution.
For the system described by the state equation \mathop x\limits^ \cdot = \left[ {\begin{array}{*{20}{c}}
0&1&0\\
0&0&1\\
{0.5}&1&2
\end{array}} \right]x + \left[ \begin{array}{l}
0\\
0\\
1
\end{array} \right]u
If the control signal u is given by u = [-0.5 -3 -5]x + v, then the eigen values of the closed-loop system will be
If the control signal u is given by u = [-0.5 -3 -5]x + v, then the eigen values of the closed-loop system will be
Select an option to see the answer and solution.
Consider the following statements regarding feedback compensation of control system:
1. A faster response can be achieved by the use of parallel compensation.
2. The environmental conditions in which the feedback control system is to be utilized affect the stability of the controlled quantity.
3. The degree of accuracy and the stability of a control system can be improved by the use of a cascade compensator.
Which of the above statements are correct?
1. A faster response can be achieved by the use of parallel compensation.
2. The environmental conditions in which the feedback control system is to be utilized affect the stability of the controlled quantity.
3. The degree of accuracy and the stability of a control system can be improved by the use of a cascade compensator.
Which of the above statements are correct?
Select an option to see the answer and solution.
Which one of the following is the best controller, to use for an electrically heated temperature controlled liquid heater?
Select an option to see the answer and solution.
Match List-I with List-II and select the correct answer using the options given below:
| List-I (Frequency Response) | List-II (Time Response) |
| a. Bandwidth | 1. Overshoot |
| b. Phase margin | 2. Stability |
| c. Response peak | 3. Speed of time response |
| d. Gain margin | 4. Damping ratio |
Select an option to see the answer and solution.
For the unity feedback control system shown in the figure, the open-loop transfer function G(s) is given as
The steady state error ess due to a unit step input is
The steady state error ess due to a unit step input is
Select an option to see the answer and solution.
For is equal to:
Select an option to see the answer and solution.
The mechanical system shown below has its pole(s) at
Select an option to see the answer and solution.
In mechanical translational system, mass is analogous to which rotational system component?
Select an option to see the answer and solution.
Q100
Open questionA synchro transmitter receiver unit is a
